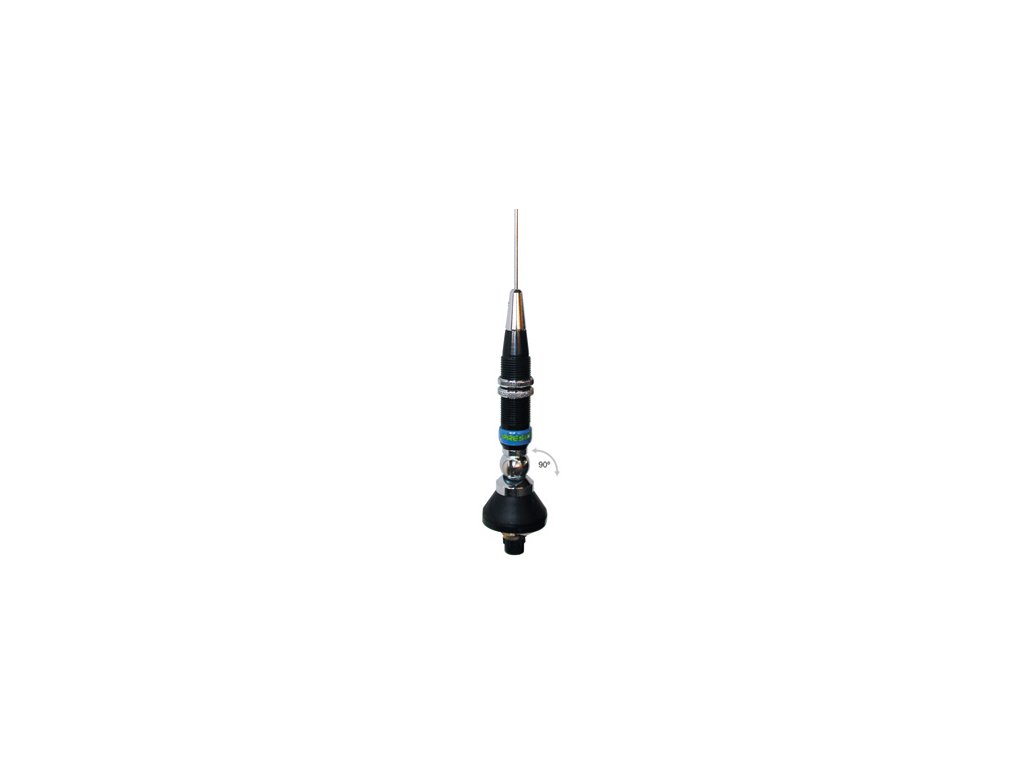

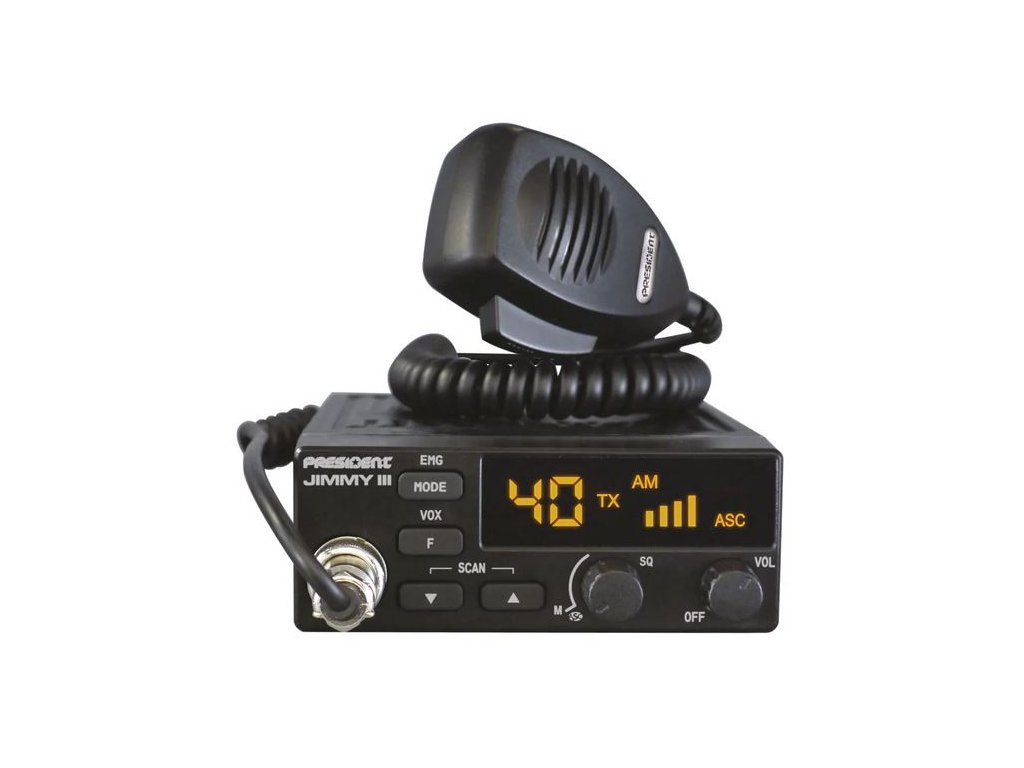

President JIMMY III + IOWA
Kód: CB JIMMY III2Detailní popis produktu
| Supply | : | 13.2 V |
| Number of channels | : | 40 |
| AM | : | ano |
| FM | : | ano |
| Channel selector | : | up / down |
| Volume | : | Volume adjustment and ON/OFF |
| Squelch | : | Manual squelch |
| ASC | : | ano |
| Display | : | LCD multifunction |
| Frequencies display | : | ano |
| Vox | : | ano |
| Scan | : | ano |
| F / Menu function key | : | ano |
| Key Beep | : | ano |
| Microphone plug | : | front (6 pins) |
| External loudspeaker jack | : | ano |
| Size | : | 115 (L) x 130 (P) x 45 (H) |
| Weight | : | 0,560 kg |
Technické parametry
General
| Number of channels | : | 40 |
| Modulation modes | : | AM/FM |
| Frequency ranges | : | de 26,965 MHz à 27,405 MHz |
| Antenna impedance | : | 50 ohms |
| Power supply | : | 12 V |
| Size | : | 115 (L) x 130 (P) x 45 (H) |
| Weight | : | 0,560 kg |
Transmission
| Frequency allowance | : | +/- 300 Hz |
| Carrier power | : | 4 W |
| Transmission interference | : | inférieure à 4 nW |
| Audio response | : | 300 Hz à 3 kHz |
| Emitted power in the adj. channel | : | inférieure à 20 μW |
| Microphone sensitivity | : | 3 mV |
| Drain | : | < 5 A max. |
| Modulated signal distortion | : | 2 % |
Reception
| Maxi. sensitivity at 20 dB sinad | : | 0,5 μV - 113 dBm AM / 0,35 μV - 116 dBm FM |
| Frequency response | : | 300 Hz à 3 kHz |
| Adjacent channel selectivity | : | 60 dB |
| Maximum audio power | : | 3 W |
| Squelch sensitivity | : | min. 0,2 μV - 120 dBm / max. 1 mV - 47 dBm |
| Frequency image rejection rate | : | 60 dB |
| Intermediate frequency rej. rate | : | 70 dB |
Doplňkové parametry
| Kategorie: | Radiostanice CB |
|---|---|
| Záruka: | 2 roky |
| Hmotnost: | 1.5 kg |
